Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: xuancai
  • Model Number: P10|8mm (HxW)-8X80
  • Usage: Semi-outdoor
  • Tube Chip Color: single color
  • Display Function: text, symboles,data etc
  • Pixels: P10|8mm (HxW)-8X80dots
  • Screen Dimension: 80x640mm
  • control: IR Remote control/ PC software/ buttons
  • usage: semi-outdoor
  • Sides: single side
  • Emitting color: single color/R/G/B/W/Yellow
  • lum: >=10000cd/m2
  • text mode: horizontal, vertical
  • brightness adjust: by hand or automatic
  • use: 5V, 12V, 24V, 36V etc or AC adapter(100-240V)
  • life span: 100000H

Packaging & Delivery

Packaging Details Package:
Indivudual package in neutral information
OEM
Delivery Time samples:7-15 working days// formal order is 21-23 working days

Specifications

manual/auto adjustment brightness, Lum>10000CD/m2
Via IR remote control/PC software(Optional), buttons
vertical text support


Product Description

New! Super brightness >=10000cd/m2 Single line Horizontal and Vertical text showing

Automatic / manual brightnesss adjustment, IR remote control/PC software/Calling buttons

LED public transportation/Bus/taxi/truck/car/vehicle message displays



1.Textual Instuction



Application:

-Meeting room, office, repecition place, dinning room

-shops, supermarket, department stores

-bars, service institution

-business reception

- private use



Specification:



PRODUCT FEATURES:
_P10|8mm (HxW)-8X80
_Color: Single Red/Yellow/Blue/Green/White
_Lighting area:80x640mm
_PCB size:94x650x mm
_Pixel:8x80 dots
_N.W.:0.555kg
_Scanning: Static
_Brightness: Lum>10000CD/m²
 And with manual/auto adjustment
_Communication:Via IR remote control/PC software(Optional)
_55 messages(A-Z,a-z,1-3),
 3 messages of them support calling could calling by buttons(1-3)
_Support vertical and horizontal displaying modes

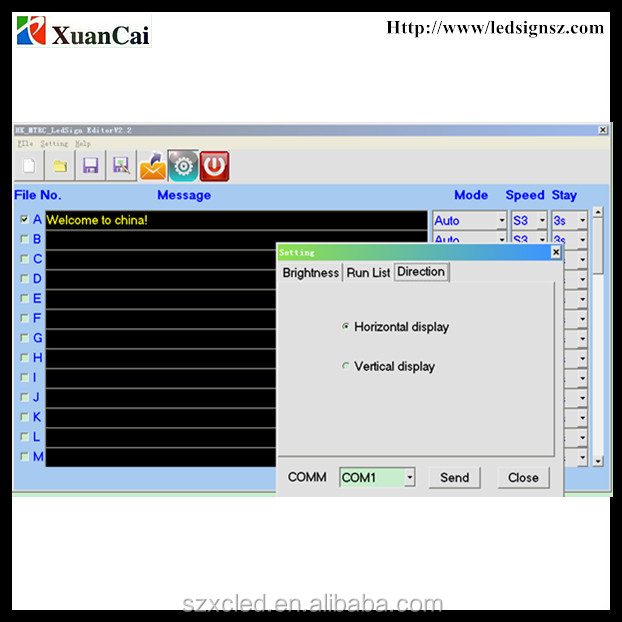

_PC Setting_Ctrl+s_ Horizontal+vertical setting interface



PARAMETERS LIST:
Pixel DiameterØ5MM (0.2”)Lighting Area80x640 MM
Pixel PitchP10|8MM( HxW)PCB Size94X650 MM
Pixel8x80 DOTSPixel (LED) ColorSingle R/Y/B/G/W
CabientAluminumStaying time1S-60S
Character Size2.76” (70MM) HeightSupper Brightness>10000CD/m²
Font SetNoCommunicationPC software+IR remote control

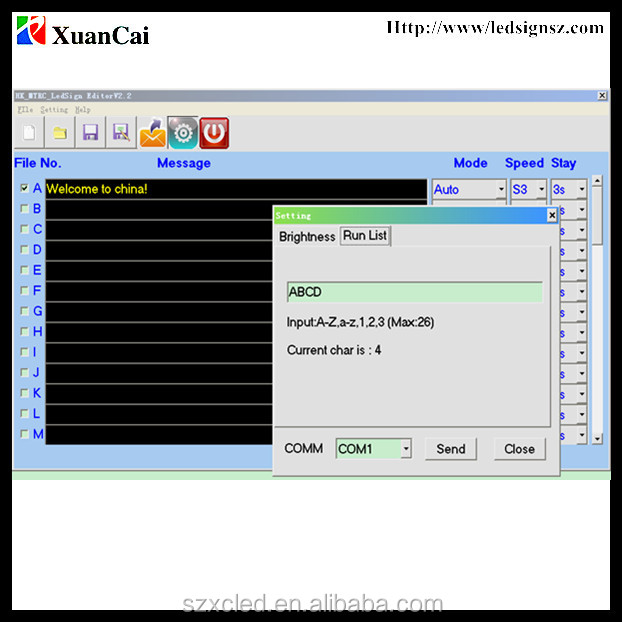

Displaying Format Horizontal or VerticalRus list andSupport:Max 26
(Ctrl+s)Sequence




Messages55 messages, each 250Pixel DiameterØ5MM (0.2”)
Chars
Moving mode11 modes:Key3 buttons to calling message
Auot,left,right,up,down,flash,static, open,close,Marquee,snowPC software1-3
Speed adjustableS1-S6Brightness adjustableAuto or Manual




Voltage5V, 12V, 24V, 36V ...Net Weight(KG)0.555KG







Support Language:

Albanian,Irish,Estonian,Basque,Icelandic,Polish,Breton,Danish,German,French,Filipino,Finnish,Dutch,Galician,Catalan,Czech,Croatian,Latin,Latvian,Lithuanian,Romanian,Malta,Malay,norwegian ,

Portugal,Swedish,Esperanto,Slovak ,Slovenia,swahili ,Turkish,welsh,Hebrew,Spain,Hungarian,Italian,Indonesian,

Byelorussian,Bulgarian,Creole,Macedonian,Serbian,Ukrainian,Armenian,Yiddish

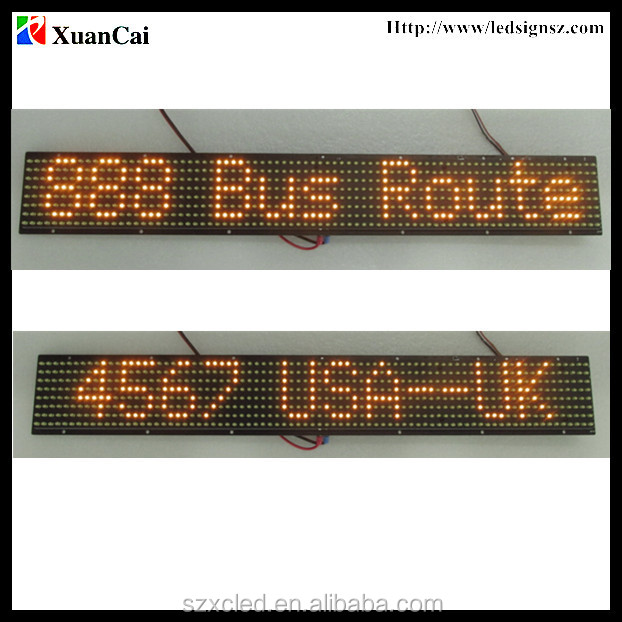

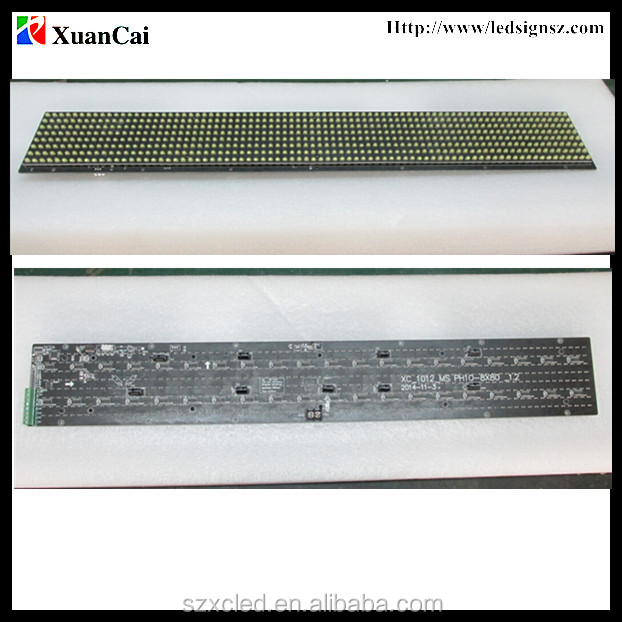

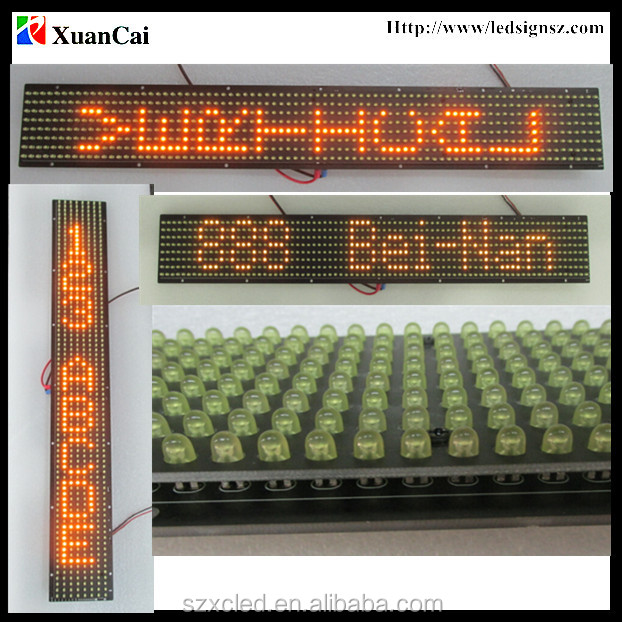

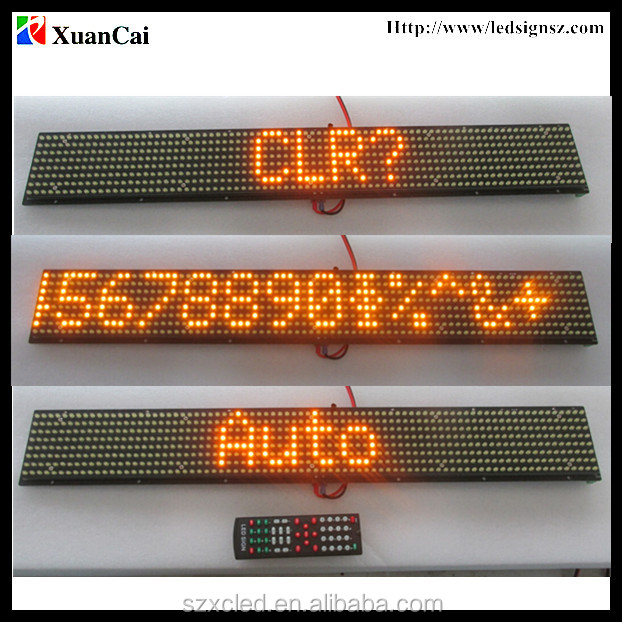

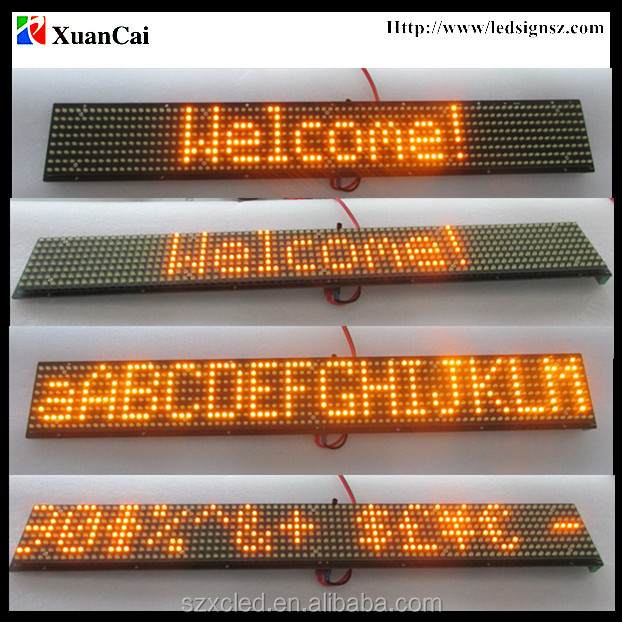

2. Real Product photo show











Packaging & Shipping

Packing

Inner size: individual

Carton size: neutral

Shipping
We can provide Drop shipping Service. The shipping cost will be on clients' side.

We don’t charge any extra freight fees except the practical fees.


Company Information

http://szxcled.en.alibaba.com/company_profile.html




Our Services

*Direct designer and manufacturer

*Beauty appearance, easy operation, high Quality with competive price.

*Language support customization

*Different application with different equiment, more sweet consideration
