LED gas price display also called LED gas price adv. Board or LED valuation board. It is a newly gas price display device which has features like power saving, energy saving, environmental protection, safety, easy operation, attract attention etc. And it is extended to display temperature, time and humidity etc.
Product: LED gas price display
Iron Cabinet: 113.5*48.5*13.2cm
Screen size: 40*104cm
it support to input space, dot, digits
Message update: remote control & computer
Remote control operation:
* Product power on and show the address of screen (A01-99) first, then display the price which was set well.
*Press 11 key to display A-XX ( XX is screen NO.), input the screen number which you want to modify price (two digits), then corresponding screen will flashing. Press 14 key, relative screen enter into editting state, other screen will return back to normal state.
* When screen flashing, press 11 key to set brightness 1-8grades L-X.
Input 14 key to confirm and enter into digital editting.
*Input relative digit or point (10 key is 0, 12 key is point), press 11 can clear current digits. Use left and right key (13 is left, 15 is right) to move cursor position, press 14 to save and ESC.

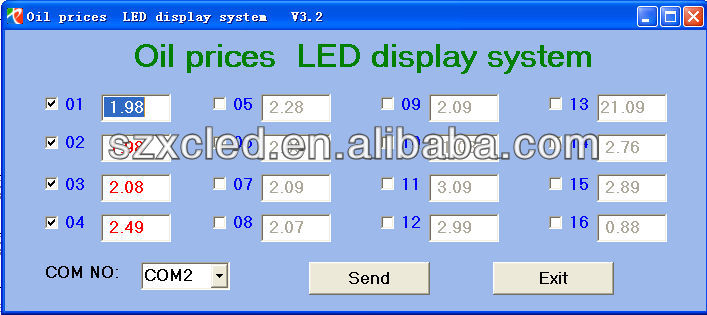

Open download software ‘Oil price LED display system V3.1.exe
To check the screen which need to update the price.
Input the new data in corresponding screen. (0-9, point, space), choose the serial port which was connected, then press Send key.
Digital height: 6inch
Semi-outdoor (Non-waterproof) Shell size: 370L×187H×45Dmm Character high: 16cm Color: red Number format : 8.8.8 (000-999 are avaviable) Control way : by 3 button to choose the routes
Power: 24Vdc Max power: 18W Packing: carton Packing size: 40×21×6.2cm Packing weight: 1.5 KG
1.The led bus route sign can display the route . 2.Red .white ,yellow color for client choose. 3.High bright led lamp, Long life: 100,000 hours
led timer,led clock,led digital display, led countdown clock,led gas price display,led production counter,temperature humidity display,led scoreboard,carparks counting systems,queue system, customized products.
