Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Xuancai
  • Model Number: M500N-780R_(P7.62-7x80R)
  • Usage: Indoor, Indoor and semi-outdoor
  • Tube Chip Color: Red
  • Display Function: Graphics
  • Pixels: 7.62mm
  • Screen Dimension: 5.3x61cm
  • Frame: Aluminum
  • Emitting material: Red dot matrix moudle

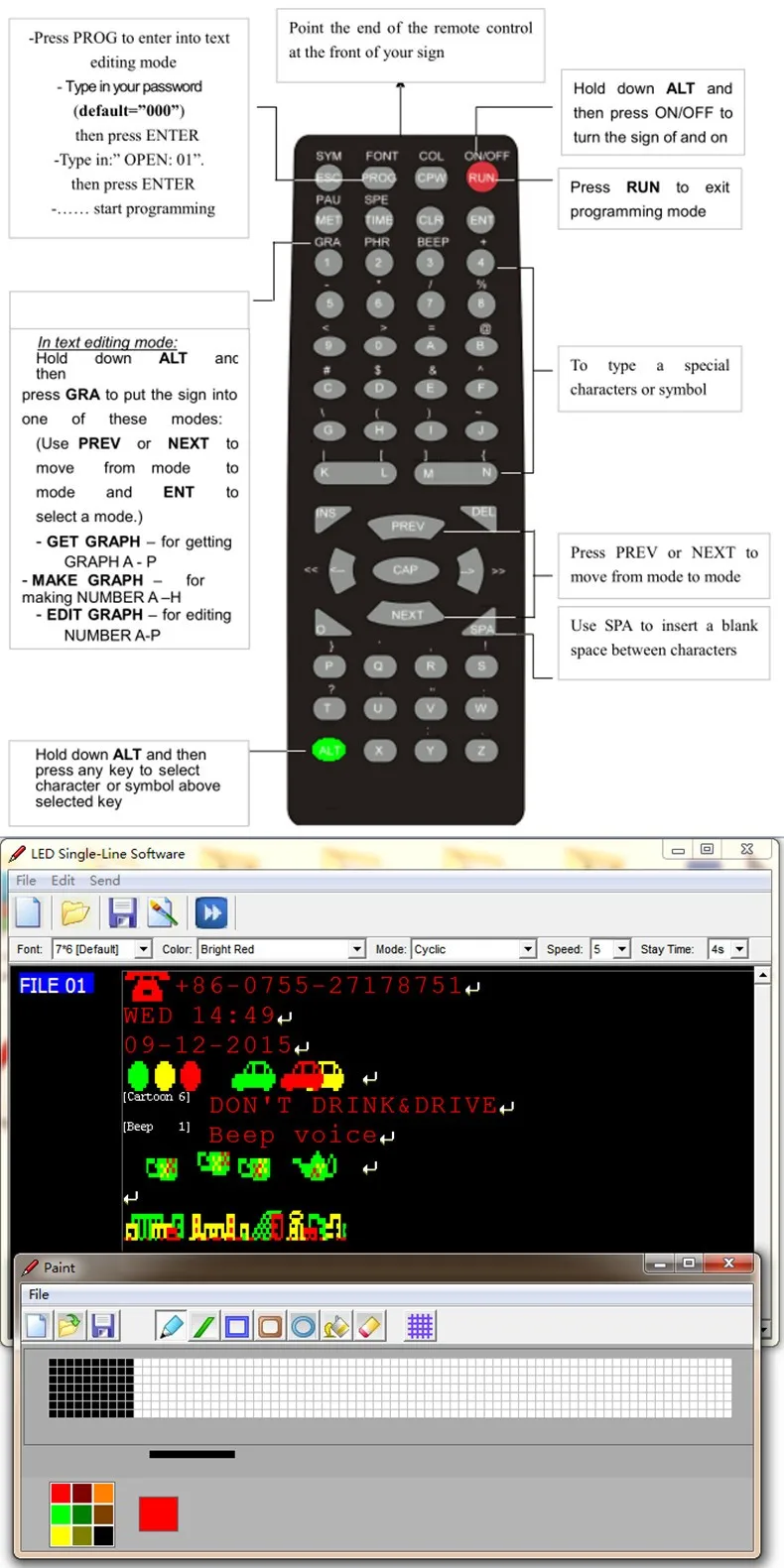

  • Communication: Remote cotrol &PC sfotware& Smart Phone app
  • Emitting color: Single red
  • Installation: shop, office, car/truck/bus/glass windows/ stading desk
  • Pixel: 7x80
  • Voltage: 5V &12V & 24V& 9-36V (DC) , 100-240V (AC)
  • Warranty: one full year
  • Life span: 100000 hours

Packaging & Delivery

Packaging Details Individual carton package
5pcs each export carton
Delivery Time 3 working day for sample, 21-23 working days for formal order

  CE RoHSRemote control wireless LED programable message running displayP7.62-7x80R(M500N-780R)Sign Light Moving text board panel screen module Office advertising scrolling text :  Multilingual letters system

Product Description

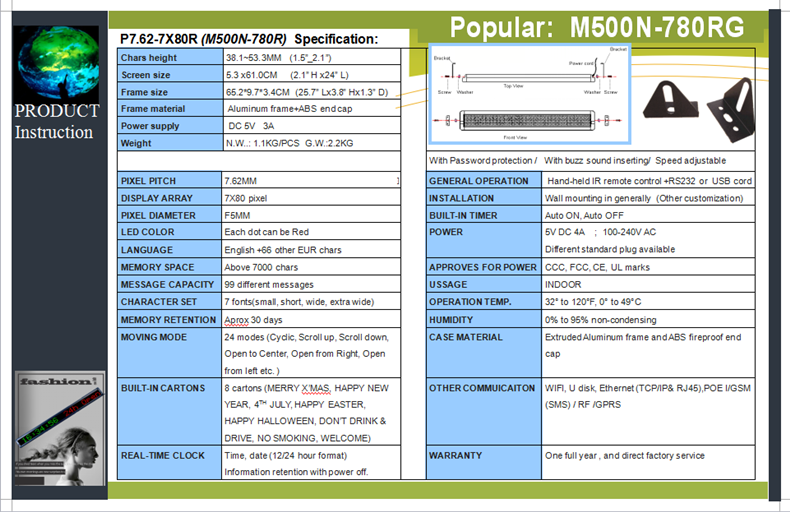

What’s parameter of led display signs?

Screen size

5.3 x61CM     (2.1 H x 24 L)

Frame size

65.2*9.7*3.4CM  (25.7 Lx3.8 Hx1.3 D)

Frame material

Aluminum frame+ABS end cap

Power supply

DC 5V   3A






7X80 pixel




Single red

Function Description:

* Message: Multiple language (English and 66 kinds of other European characters), graphic, symbol and simple animations
* Storage: up to 99 messages
7 kinds of font which can be displayed as regular, bold and wide modes
Moving method:24 kinds of method to display message (Cyclic, Scroll up, Scroll down, Open to Center, Open from Right, Open from left etc. )
* Memory space: Approximately 7000 characters
* Built-in timer to auto. turn on/off during the day
* Built-in real time clock with 12-hour or 24-hour display format.
* 8 pcs pre-defined graphs to recall instantly.
* 8 pcs user-defined graphs
* 30 pcs pre-graphic symbols such as phone, car, clock, rocket, etc.
* 8 pcs pre-defined phrases and animations such as MERRY CHRISTMAS
* Setting a displayed list, display these messages in sequence.
Time-Alarm setting
* 8 grades of programmable displayed speeds
* 8 grades of pause periods from 2-60 seconds
* 3 kinds of buzz sounds which can be inserted into editing message randomly.
* Interface of the managing software support multiple languages
* Password protection
Communication port:  * RS232/USB/U disk/ Ethernet(TCP/IP; RJ45),POE /WIFI/GSM(SMS)/ RF /GPRS / Bluetooth phone app (optional)
Accessories: power supply and power cord, CD (contains software and product manuals), mounting brackets and screws,  communication cable, remote control and AAA batteries.

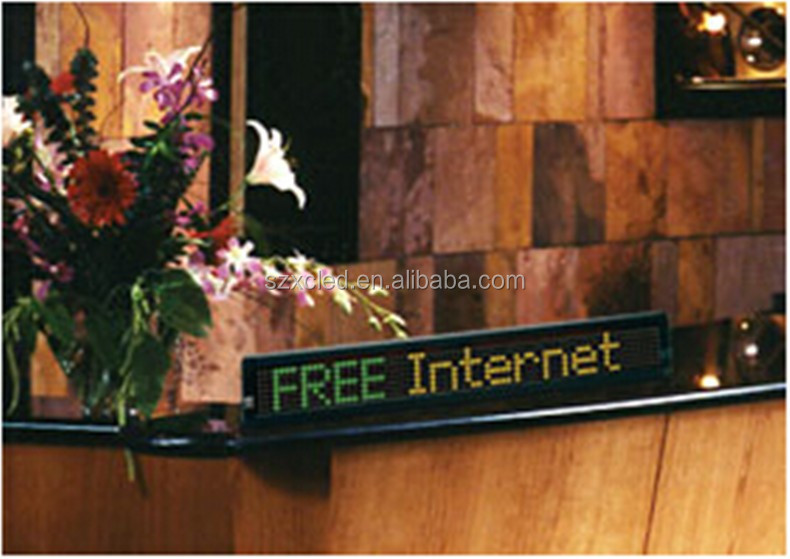

Where i can use it ?  Application place:

Usually be  indoor and semi-outdoor environment or customize outdoor model!

Many application choice, but often at Office, Supermarket, Shops, Stores, Bars, Booth, Public service place,  Industry usage, some special device or machine and cars .

 (For car, we will change to use suction cups to fixed them on windshield, and equip cigar lighter to get power from car directly)

Were you have other models or similars ?

Most popular models in same height  and  length is range from 30cm ~2 meter.

Different color available: RedYellow ,BlueGreenWhite, RG  (tri-color of Red,Green and yelllow), RGB

Different communication mode available:

General with Remote control+ RS232 or USB PC software. Other special could with RS485, WIFI, RF, TCP/IP(RJ45), POE, GSM(SMS), GPRS, smart phoen bluetooth app  etc. ------

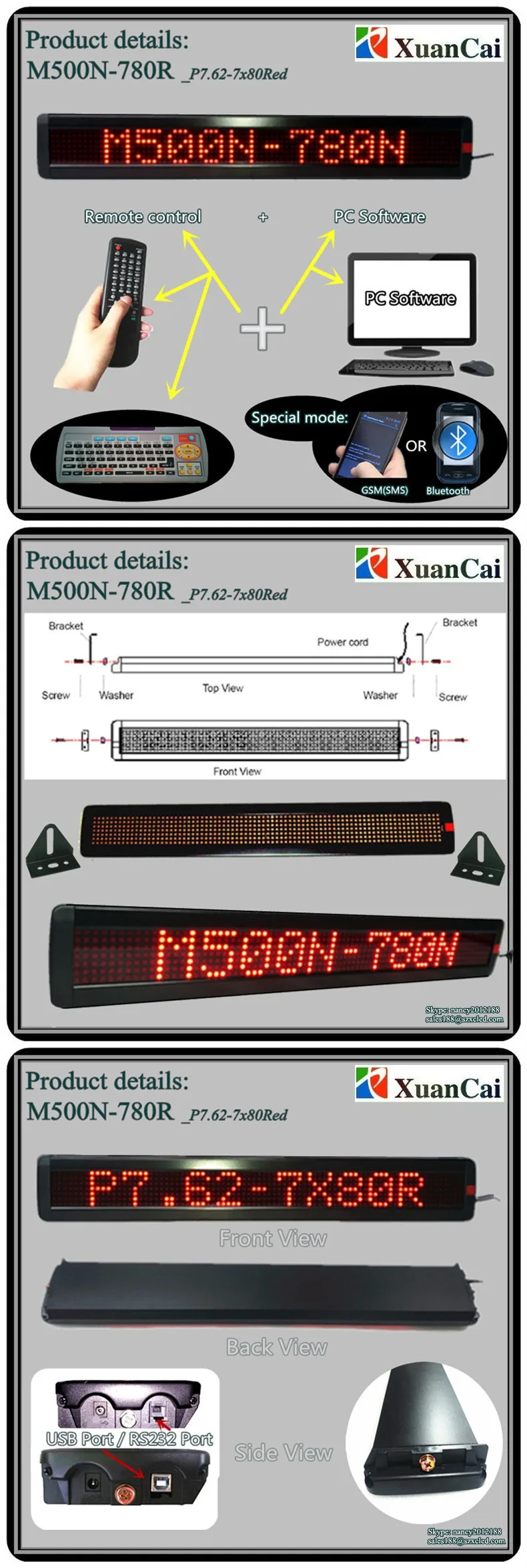

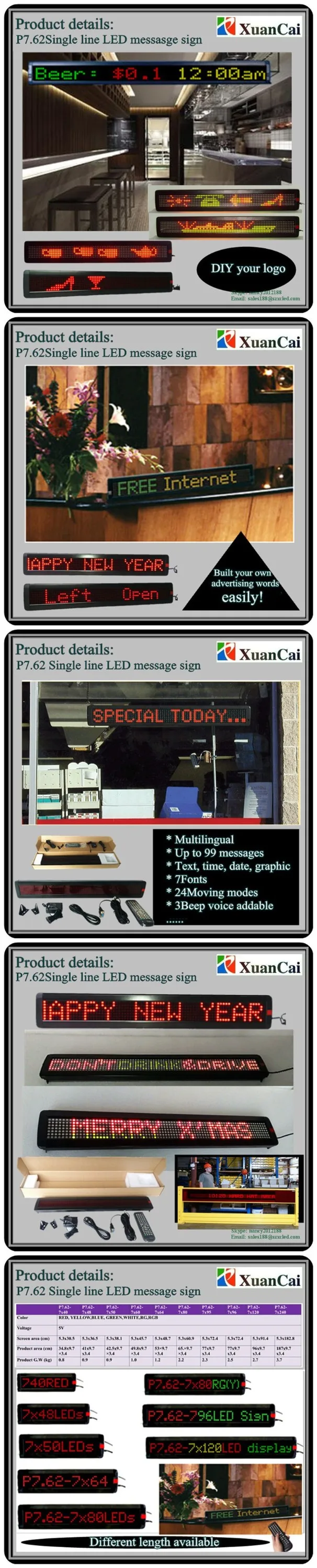

Product photo show:

Packaging & Shipping


What about it's packing and shipping details ?

We can provide Drop shipping Service. The shipping cost will be on clients' side.

We don’t charge any extra freight fees except the practical fees.

Company Information


Shenzhen Xuancai Optoelectronics Co.,LTD be your good choise !

 Factory show !

 Factory former projects show :




Our Services


 Our serivices ?

Direct designer and manufacturer! Customization supporting!

Customiation supporting!!!

Direct designer and manufacturer with high quality and good price service here!  (o^_^o)
