Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: Xuancai
  • Model Number: P3.75-16x96W
  • Usage: Indoor
  • Tube Chip Color: White
  • Display Function: Text, graphic, symbols
  • Pixels: 3.75mm
  • Screen Dimension: 60X240MM
  • Pixel Pitch: 3.75MM
  • Pixel: 16x96 dots (HxW)
  • Emitting color: Single Red, Yellow, Blue, Green, White
  • Screen size: 60X240MM
  • Cabinet size: 25.5 X 7X1.5CM
  • Character height: 60MM (2.4" inch)
  • Communication mode: USB PC software
  • Rechargeable battery: Addable (8-16 hours)
  • Life span: 100000Hours
  • Warranty: one full year

Packaging & Delivery

Packaging Details Carton
Delivery Time Sample 3-7 days, formal order 21-23 days

6 Words P3.75-16x96 Single color Ultra-thin aluminum frame Rechargable   5V USB Programable LED message display/Board/ Sign/ Panel/ module



Product Description


 Tech. Parameters:


4 Words   ( PH3.75-16X64 )

6 Words    (PH3.75-16X96 )


16x64 DOTS

16X96 DOTS

Emitting material

0603 SMD

0603 SMD

Emitting color

Single Red/Yellow/Blue/Green/White

Single Red/Yellow/Blue/Green/White

Chars height

60MM  (2.4”)

60MM  (2.4”)

Screen size

60X240MM    (2.4” H x 9.4” L)

60X360MM  (2.4” H x 14.2” L)

Frame size

25.5 X 7X1.5CM  (10” x2.8” x0.6” )

37.5 X7X1.5CM (14.8” x2.8” x0.6” )

Frame material

 Aluminum  frame+ABS end cap

Aluminum  frame+ABS end cap

Power supply




N.W..: 0.25KG/PCS

N.W..: 0.39KG/PCS


Function Features:


1) Rechargeable battery addable

2) Multilingual. It displays 16 Western characters or 8 Asian Characters.

3) 6 Text Messages, each of them displays 250 western characters.

4) 2 Images Message (max.384x12 pixels. It’s better use black font with white background BMP


5) 11 twinkled animations embedded and a brightness font.

6) It’s easy to select run sequence of 8 messages and adjust to the brightness

(25%,50%, 75%,100%)

7) The Software uses Under Windows Vista/XP/2000/98.

8)Single mini USB interface for charging and communicating.



Product Features:


-Cabinet use U aluminum molding as a whole.

- Bright silver sandblast surface processing design. (Black color on Batch order available)

-15mm depth ultra-thin display body

-Elegant and beauty style

-Inside nut for bracket and chain installation

-USB PC software to update message

-Rechargeable battery Addable

-Red, Green, Blue, White, Yellow available



Support Language:


Albanian,Irish,Estonian,Basque,Icelandic,Polish,Breton,Danish,German,French,Filipino,Finnish,Dutch,Galician,Catalan,Czech,Croatian,Latin,Latvian,Lithuanian,Romanian,Malta,Malay,norwegian ,Portugal,swedish,Esperanto,Slovak ,Slovenia,swahili,Turkish,welsh,Hebrew,Spain,Hungarian,Italian,Indonesian,



Arabic,farsi,Georgian,Gujarati,Korean,Lao,Bengalese,Japanese,Telugu,Tamil ,Thai ,Urdu

,greek ,Hindi,Vietnamese, Kannada, Armenian, Yiddish

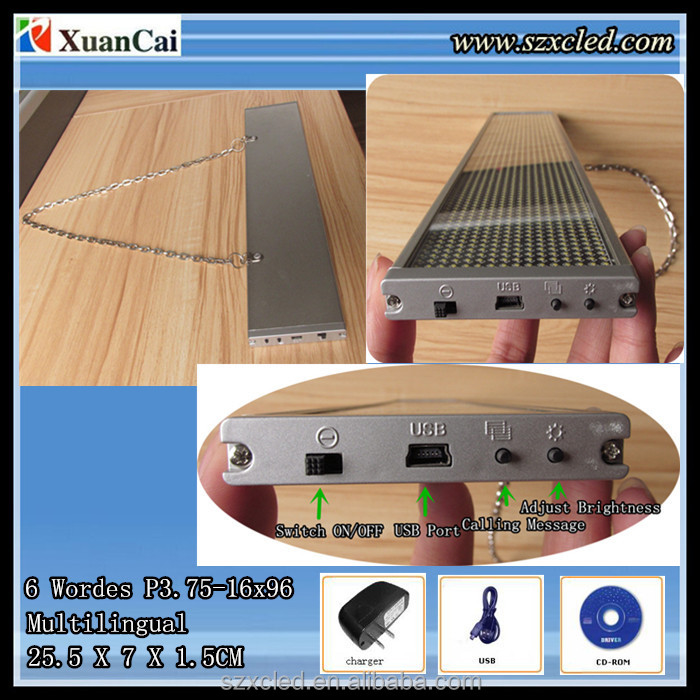

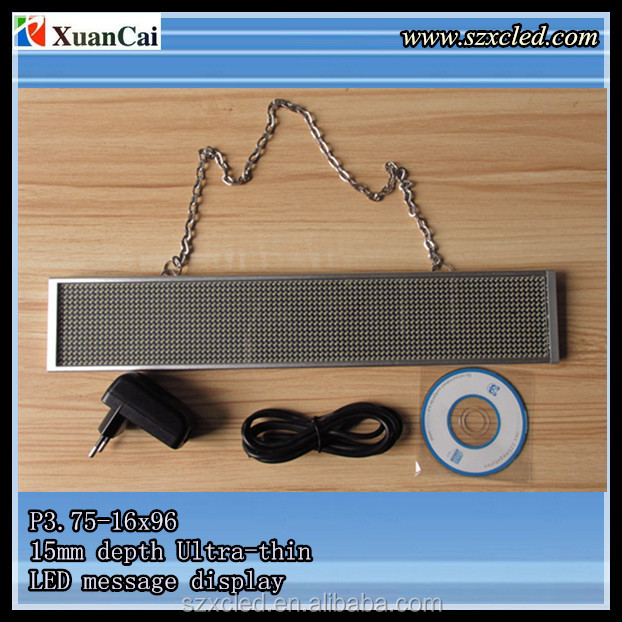

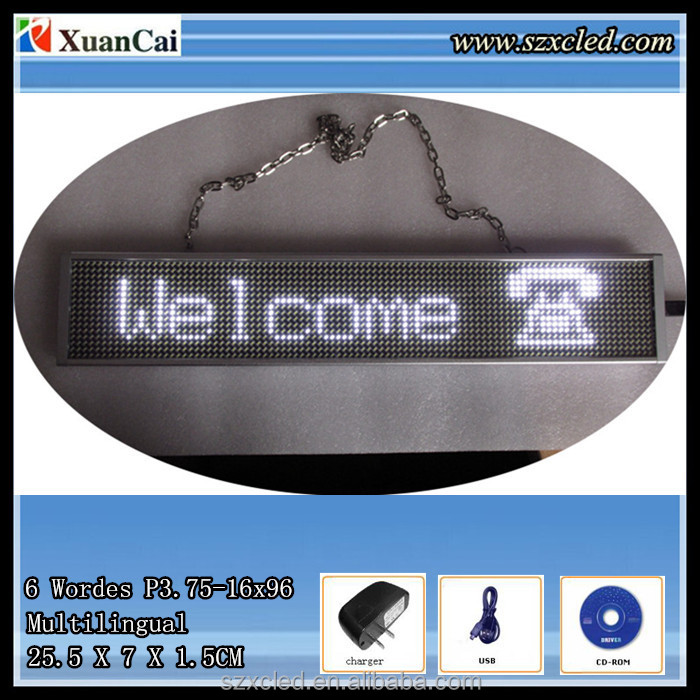

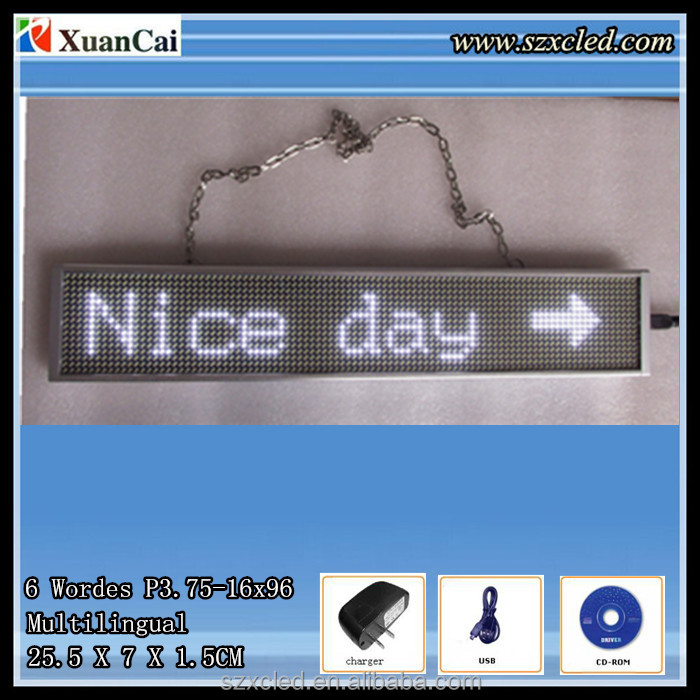

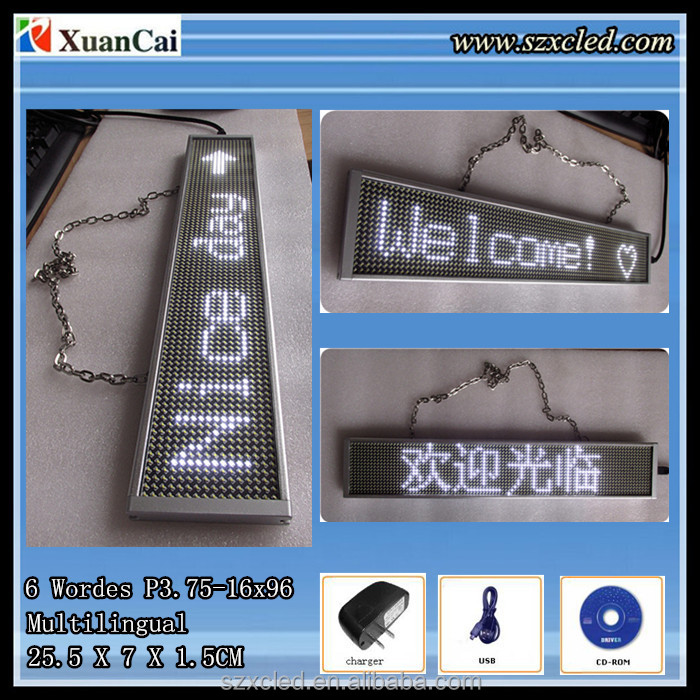

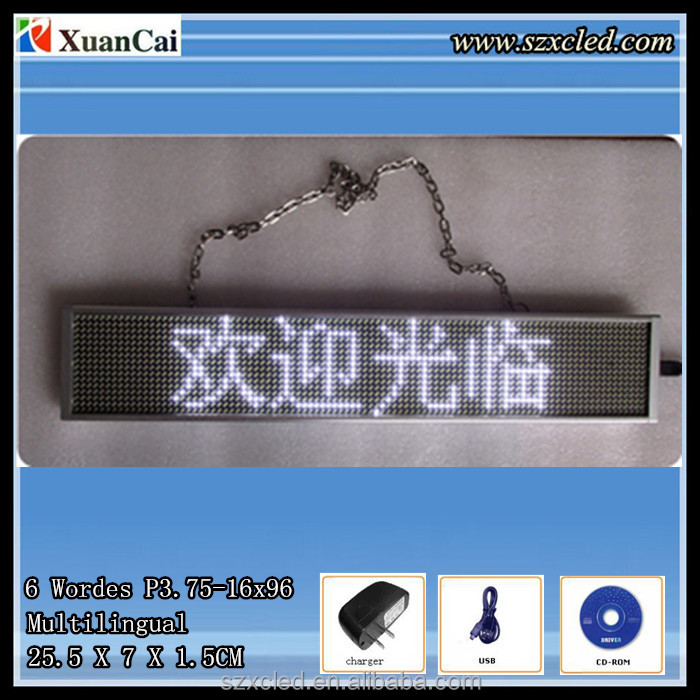

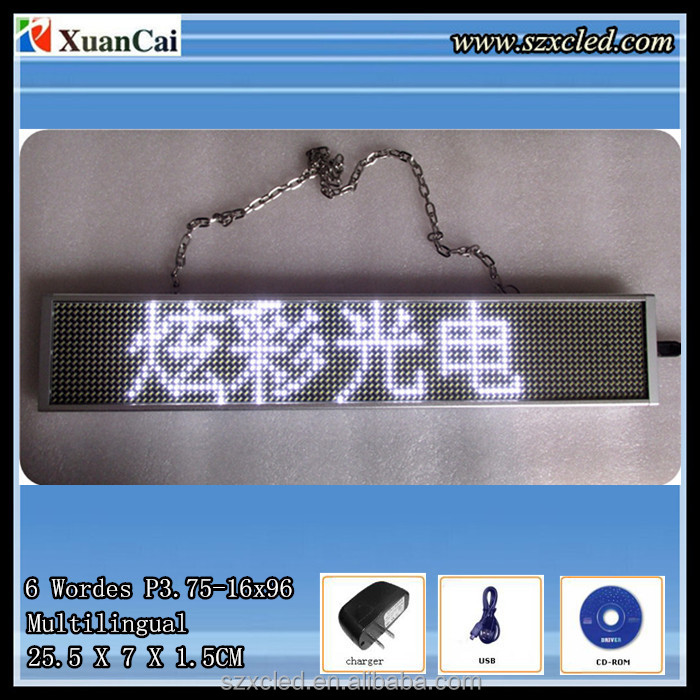

Photo instruction:





Packaging & Shipping

 Accessories to each set:


AC adapter (100-240V) , USB cord, CD





Our Services


*Direct designer and manufacturer! Customization supporting!

*Beauty appearance, easy operation, high Quality with competive price!

*Different application with different equiment, more sweet consideration!




Customiation supporting!!!


No limitation on _Size


No limitation on _Communication mode


No limitation on _Application place


No limitation on_Voltage level


No limitation on_Installation way


No limitation on_Emitting color


No limitation on_PH


No limitation on_Pixel









 1. Wheter there is a limitation on quantity? or order Amount?

  # There is no limitaion on quantity. We just different quantity with different price level. Chargeable sample acceptable to our factory. Also on amount.


2. How about your product quality?

 # Dear,  all of our product are produced to export. We have high requirment on our every production procedure.

Our main product are already with CE, RoHS and FCC proves!


3. How about your price? with competiveness?

# As a direct manufacturer of LED display in China. Our product are supplied to you directly, so compared with some midle-agent, our price is very competive. And you can be assured that our cost is very good.


4. How about your delivery time and payment mode?

# To sample is 3-7 working days  and full payment before the production.

(If customized product, maybe the time will be longer to 15working days).

To formal order, usually be 21-23 working days and deposit 30% first, 70% before the shipment!


5. How to send order to you?

 # Dear, you can contact with us by inquiry. We will reply you within 24 hours.

If every details of cooperation are clear, we will send you proforma invoice with our opening bank information ( TT/ Western Union/ Paypal).


6. How about your after sales?

 # We have professional engineers with more than 10 years experience in LED industry.

 If esteemed you meet some operation problem or other problem, you can contact us anytime.

We will try our best to solve your problem.

All product before ship out from factory are pass through strict and careful testing!!!
