IP65 full color P16-80x80cm two sides led pharmacy cross display price

FOB Reference Price:Get Latest Price
US $300-1,300 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
xuancai
Model Number:
XMSCR-16S
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
time,date, temperature, text, graphic, animation etc
Pixels:
10mm
Screen Dimension:
800x800 mm
communication mode:
RS232/Wireless/GPRS/TCP IP/WIFI
outer frame material:
iron
frame color:
white or green
Brightness:
high brightness 6000cd/m2
frame size:
808*1109*100(mm)
Resolution:
48*48 dot
Voltage:
100~240VAC
Power consumption:
180W
Working environmen:
-15°C to +60°C, 10% to 90%RH
Life span:
100,000 hours
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Individual package:
wooden case: 124*24*94cm/43KG
Port
Shenzhen port
Lead Time :
samples:7-15 working days/ formal order is 21-23 working days

Specifications

* outdoor waterproof Iron cabinet
* time,date, temperature, graphic, (3D,DIY) animation, worldwide language display-

RGB full color RF wireless communication P16-80x80cm two sides

led pharmacy cross display



1. Textual instruction



Monochrome&double-color& full color are available



a. function parameter:



1. 4 grades of brightness and it support automatic adjustment or programmed control in different period.

2. 5 grades of speeds for text, 8 grades of moving speeds for animation.

3. Animation setting: comes with animation or user-defined animation displaying.

4.Time control: set two time periods to open and close the LED automatically and timing function.

5. 3kinds of fonts, fonts size&offset setting, bold and italics setting.

6.Worldwide language displaying.

7. Multi-language operation interface: English, French, Italian, Spanish etc..

8. Display function: current temperature (Centigrade), time, date, graphics, animations (including GIF, 3D) and text .

9. All operations can be done very easily and conveniently!

10. Low power consumption.



 b. tech. parameter:



Part NoDescription
XMSCR-10SPixel Pitch10mm
 Display size480*480(mm)
With frame size520 × 820 ×100mm
Cabinet Resolution48*48
Weight (kg)18
Display colorR,G,B,W,Y   (or dual/full color )
Display contentAnimation, graphics, text, time, date, temperature etc
CommunicationRS232/Wireless/GPRS/TCP IP/WIFI
PackingCarton
Brightness≥3000|5000|6000cd/m2
Max power consumption60/120/180W(Green/dual/full color)
Life span100,000hours
Part NoDescription
XMSCR-16S Pixel Pitch16mm
 Display size768*768(mm)
With frame size808*1109*100(mm)
Cabinet Resolution48*48
Weight (kg)30
Display colorR,G,B,W,Y   (or dual/full color )
Display contentAnimation, graphics, text, time, date, temperature etc
CommunicationRS232/Wireless/GPRS/TCP IP/WIFI
PackingCarton
Brightness≥3000|5000|6000cd/m2
Max power consumption60/120/180W(Green/dual/full color)
Life span100,000hours
Part NoDescription
XMSCR-20SPixel Pitch20mm
 Display size960*960(mm)
With frame size1000*1400*100(mm)
Cabinet Resolution48*48
Weight (kg)40
Display colorR,G,B,W,Y   (or dual/full color )
Display contentAnimation, graphics, text, time, date, temperature etc
CommunicationRS232/Wireless/GPRS/TCP IP/WIFI
PackingCarton
Brightness≥2500|4800|5800cd/m2
Max power consumption170/340/510W(Green/dual/full color)
Life span100,000hours
Part NoDescription
XMSCR-25SPixel Pitch25mm
 Display size1200*1200(mm)
With frame size1240*1640*100(mm)
Cabinet Resolution48*48
Weight (kg)50
Display colorR,G,B,W,Y   (or dual/full color )
Display contentAnimation, graphics, text, time, date, temperature etc
CommunicationRS232/Wireless/GPRS/TCP IP/WIFI
PackingCarton
Brightness≥3000|5000|6000cd/m2
Max power consumption170/340/510W(Green/dual/full color)
Life span100,000hours





 2. Photo instruction

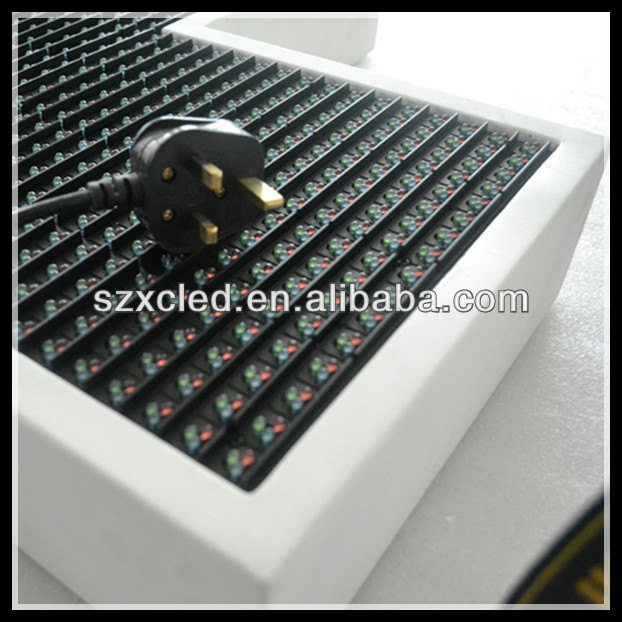

 3. Real prodcut photo show



More phtots showed in below  link:

 http://szxcled.en.alibaba.com/custom_page_2/Showroom.html







Other type:











5. Installation photos
